Port rotation numbers - the problem and the project

The port rotation numbers were a code used by clerks at the Board of Trade in London during the 1840s and 1850s to compile registers of seafarers which are now held at The National Archives (TNA). They were used particularly in the registers for 1845 to 1855 (TNA, BT 113) and cover more than 500,000 records.

From 1835, masters and owners of ships were legally required to make a written crew agreement which showed a list of the crew. After each voyage or every six months, the documents were returned to the port officials and forwarded to the Board of Trade. They are are now at TNA in series BT 98. The data from the crew documents was used to make up the various registers of seafarers using a numerical code.

The code included the port number which showed the ship's port of registry and the port rotation number, which showed the ship the seafarer had been working on.

The registers of seafarers and the crew lists have survived. The key to the port numbers is known but, unfortunately, the original key to the port rotation numbers has not survived. So there are extensive records of seafarers showing which ships they worked on, but in code. There are also the crew records for the ships but, without the code, there is no way to make the connection between them.

For example, a seafarer's record in BT 113 might show a code: M, 456-64-6/51.

Most of it is clear: M means Mate, 64 is the code for London and 6/51 shows that the voyage ended in June 1851.

456 is the port rotation number and that is the missing key. There is no way to work from that number to the ship's name and so to the crew documents.

They could be anywhere in the dozens of boxes of crew lists in BT 98 for London for 1851, each with a hundred or so documents, each with many crew members. The boxes are arranged in alphabetic order of ships' names, but if you do not know the name, that is no help. Searching those boxes for one seafarer would take some time.

There is a further example, here: Example

The official position was that 'No index to the port rotation numbers has been found'. That was true, until now...


Finding the key to the port rotation numbers

CLIP was approached by family historian Peter Hamersley, who has researched crew lists for the period using images of the documents which are available online on Family Search via LDS Church Family History Centres and associated libraries.

Peter was convinced that the port rotation numbers were assigned to individual ships and did not change. He had made up a list of port rotation numbers for his own use and suggested extracting data from the crew documents to compile a modern version of the key to the numbers. That would take some time, but the idea was that the few hundred boxes of crew documents for one year would provide a key which would work for other years as well. However, that depended on the initial assumption being correct.

Peter provided us with some of the data he had extracted for Whitby ships and we compared that with other data which we had from the shipping registers for Whitby. The key was there: the port rotation numbers went in step with the numbering in the shipping registers. So the port rotation number did indeed belong to a particular ship, though with the slight twist that a ship gained a new port rotation number if she was re-registered, even if the new registry was at the same port. So Peter was right.

This link to the shipping registers is significant. It provides the system that must have underlain the allocation of the numbers and that validates what Peter was saying. The link can readily be tested against the data. All checks so far indicate that it works! That being so, it provides a way of checking data extracted from the crew lists and of extrapolating from the extracted data to other ships and other years. A relatively small amount of data extraction would provide the key to most of the seafarers' records.

We explain below exactly how the port rotation numbers were created and used.

We also explain how the 1851 Port Rotation Numbers Project is making a modern equivalent of the clerks' lists. Some of this is already online.

Navigation up arrow

The numbers game

Several different numbers turn up in the records of ships and seafarers (not all of them named consistently either).

We'll need to refer to some of them below, so this list explains what they are:

Port numberNumbers used as a shorthand for ports of registry - for example, London was port 64.
Register numberRegister entries at a port of registry were numbered sequentially, starting at 1 each year. This was used as a way of identfying a ship - for example, Mary, Hull 45/1842.
Port rotation numberNumber allocated to a ship and used as part of a code to identify the ship and her port of registry.
Register ticket numberNumber allocated to a seafarer in the registers of seamen.
Navigation up arrow

How the port rotation numbers were assigned

Figure 1 shows how the port rotation numbers were allocated. The data is fictional.

They started from the shipping registers at the port of registry.

When a ship was registered, a fresh entry was made in the local shipping register. The entries were numbered consecutively, with the register numbers starting again at 1 each year.

That register number was marked on a copy of the register entry which was given to the ship's owner. It formed part of the ship's papers and was proof that the vessel was a British registered ship.

A further copy (transcript) of the register was sent to the Board of Trade (aka Registry of Shipping and Seamen, RSS) in London.

The port rotation number list was probably compiled from these transcripts. As each new transcript arrived, the clerks added details of the ship (name and register number) to the list of ships for that port and the new entry was allocated the next port rotation number.

The port rotation numbers therefore go in step with the register entries back at the port. Though the register numbers started at 1 again each year, the port rotation numbers carried on in sequence.

If a ship was re-registered at another port, it gained a new port rotation number corresponding to the new register entry when the transcript of that arrived in London. That number would be the next available port rotation number for the new port. The same applied if the ship was re-registered at her existing port (registered de-novo). A new port rotation number was allocated, superseding the old one.

Ships could therefore have several port rotation numbers, one for each registration. The reason was that the ship was identified on the crew list by the register number and year (see below) which would have been the most recent registration details. Also, it was probably simplest for the clerks just to allocate a new port rotation number, rather than searching back (unreliably) or cross-referencing to the old details.

Similar reasoning was probably why numbers were not re-used when a ship was lost or sold abroad.

The ports of registry also made annual returns of ships registered and it is possible that these returns were used as well.

The remaining question is what was the source for the first lists of port rotation numbers?

The port rotation numbers go in exact sequence with the register numbers from 1846 onwards. Prior to that, they are still linked to the register numbers, but it appears that some ships do not appear in the list of port rotation numbers. That would indicate that the lists were originally compiled in 1845, starting with ships which were still extant at that date. It is possible that the ports annual returns of shipping for 1845 were used to start the list, but unfortunately, only the returns for 1850 have survived and are in BT 162/19.

As we have worked further into the documents more details and twists have emerged, but they have confirmed and clarified the initial idea.

Fig 1: How the port rotation numbers were allocated
Navigation up arrow

How the port rotation numbers were used

Figure 2 shows how the port rotation numbers were used. The data is fictional.

The port rotation numbers were used to compile the registers of seamen's service. There were various registers - some for seamen and others for officers. These registers have survived and are at TNA in BT 112, BT 113, BT 116, BT 119, BT 120 - some of which are indexes to the other volumes. Records for masters are in BT 115 and BT 124.

The source of their data was the crew lists and agreements which were returned to the Board of Trade at the end of each voyage or at the end of a half-year. These documents were headed with the name of the ship, her port of registry and her register number and year, together with details of the owner and master and the period that the list covered. Below that was a list of the crew, with their ages, birthplace, previous vessel and the capacity in which they were engaged.

The first task for the clerks was to identify the ship by looking up the port rotation number list for that port and then running down it to find the correct ship, register number and year. Against that, they found the port rotation number. That was then copied to the crew list as part of a code, which was often in this pattern:

Port rotation number-Port number-Date the voyage ended  eg: 236-104-6/47

Once that was done, the crew document was passed to the clerks whose job it was to compile the seafarers' registers. They had the difficult task of finding the seafarer in the registers - difficult because the seafarer's name was handwritten on the crew list, often badly. On some crew documents, the seafarer's ticket number was shown, which must have been of great assistance to the clerks.

Having found the right seafarer, they then copied the code from the crew list to the register entry for that person.

They then moved on to the next member of the crew and repeated the operation.

Fig 2: How the port rotation numbers were used
Navigation up arrow

How the port rotation numbers list is being recreated

Figure 3 shows how the port rotation numbers are being recreated. The data is fictional.

Recreating the list of port rotation numbers starts from data extracted from the crew lists in BT 98. The original documents are available at TNA and also as images made by the LDS Church and available on FamilySearch (though only at LDS CHurch Family History Centres or LDS Affiliate Libraries).

Peter Hamersley is working on the documents for 1851 from films at an LDS Church Affiliate Library. There are 458 boxes of them, from BT 98/2371 to BT 98/2808 with an additional seven boxes of colonial records. From the documents, he is producing a list of the port rotation numbers, names of the ships and their registration details.

Peter is working on the records for one port at a time. There are several boxes/films for most ports; for ports like Liverpool and London, there are dozens. It takes about an hour per film for an experienced transcriber.

In parallel, CLIP is transcribing the data for each port from the annual returns for 1851 in BT 162/19, images of which can be downloaded from TNA for free. We are recording the ship's name, register number and year, and tonnage as shown in the returns. BT 162/19 covers all British ports except London, for which there appear to be no returns, unfortunately. However, BT 111 contains a full index of London registered ships from 1833 to 1856, which we have transcribed. Other parts of BT 111 contain data for all ports from 1820 to 1856, which we are currently working on. We also have access to other sets of data, such as the early entries in the Appropriation Books, some of which show register numbers and years.

By cross-correlating these data sets, we are able to check the data in the various sets, which is important as these are all hand-written documents and the writing is sometimes not easy to read. Then we can combine the data sets into a composite index, which shows the ship's name, port rotation number, register number and year, and tonnage.

There is a bonus however. Where the port rotation numbers run in strict sequence with the shipping registers, port rotation numbers can be deduced for ships for which there is no BT 98 data, and similarly register numbers and years can be deduced for ships for which those are missing from the other data.

The final bonus is that, following Peter Hamersley's insight, working from the crew lists for one year will produce data which will apply to all years. It will not be all the port rotation numbers, but it will be a substantial proportion of them.

Outcomes of the project

By far the most important output from this project will be the port rotation number index.

This will provide a resource to deal with a long-standing problem, providing a key that has eluded researchers for decades and unlocking the data for more than 500,000 seafarers.

We are already making data avaiable via a search page on this site. See below!

There will be three further outcomes from the project.

  • The data extracted from BT 98 will provide an index to those pieces (boxes) for TNA.
  • The data from BT 162/19 will provide lists of ships extant in 1850 by port, joining the existing CLIP data taken from the Mercantile Navy List (MNL) for every tenth year from 1860 to 1940.
  • When BT 111 is complete, the combined data will provide the opportunity to create a full ships' name index for the period from 1830 to 1856, with an estimated 30,000+ entries. This will include many small vessels not included in the records of insurance companies such as Lloyds. As with all CLIP data, it will be possible to link it to other sources such as existing register indexes and transcripts.
Fig 3: How the port rotation numbers list is being recreated
Navigation up arrow

Can you help us?

This is going to take some time and we would be glad of any volunteers to help make the transcription for this ground-breaking project. Working through one of the boxes or films of BT 98 takes an hour or so and is straightforward once you have your eye in. Just an hour now and again is fine. It needs no special knowledge or forms and we'll provide full instructions and support.

Please get in touch if you visit TNA and sometime have time to spare, or if you have access to FamilySearch via a LDS Church Family History Centre or a LDS Affiliate Library.

To find a centre or library near you, look on the LDS Church site: FamilySearch centres

Please help if you can. Every little helps and everyone will benefit.

There are more details here: Information for volunteers

CLIP contact details are on the menu bar above.

Navigation up arrow

Using the port rotation numbers index

A test version of the new index is now available on this site by following the link to the right.

We are adding data steadily and the index page shows the coverage so far.

Navigation up arrow

An example

The figure shows the register entries in BT 113/208 for an apprentice, James Breckon of Goathland (which is just inland from Whitby). He was apprenticed in 1851.

The record shows a port number of 104 which means that the ship he sailed on was registered in Whitby. The port rotation number, 86, shows the ship. Her name is not recorded, but the entries show that James worked on the same ship from 1851 to 1853 because the same port rotation number appears in each year.

The voyages in 1851 and 1852 were in the home trade (around the British Isles and the continent from the River Elbe to Brest) because the entries cover both columns. Those for 1851 cover two half years ending June 1851 and December 1851, but there is only one list for 1852.

The record for 1853 shows a foreign trade voyage. The ship is the same - 86.104.1 (it's not clear what the 1 refers to). The voyage is shown on the row below. She sailed from Woodbridge (port number 107) on 17 September 1853 and is shown arriving back on 9 September (which is probably a clerical error).

There is nothing to indicate the ship's name, so finding her crew documents could be difficult. There are ten boxes of documents for Whitby for 1853, references BT 98/3601 to BT 98/3610. Each of them contains up to a hundred documents for different ships. Knowing the ship's name would narrow the search down to just one of those boxes.

Using the search form, the results show that the port rotation number 86 refers to a ship named Concord registered at Whiby, 6/1837, 189 tons.

The results also show that the crew lists for 1851 will be found in BT 98/2778, covering Whitby B-C. We are sure about that, because that is where our data came from.

The results also show where crew documents will probably be found for other years, for example in piece BT 98/3603 which covers Whitby CI-D for 1853.

The crew lists and agreements would show some details of the voyages and an example is shown below - a foreign-going voyage to Cronstadt in July 1851 (which is not listed in James's records). Newspapers can also be used - for example, the Concord is reported as arriving in Gothenburg from Woodbridge on 25 September 1853.

Fig 1: Register of seamen entry for James Breckon in BT 113/208

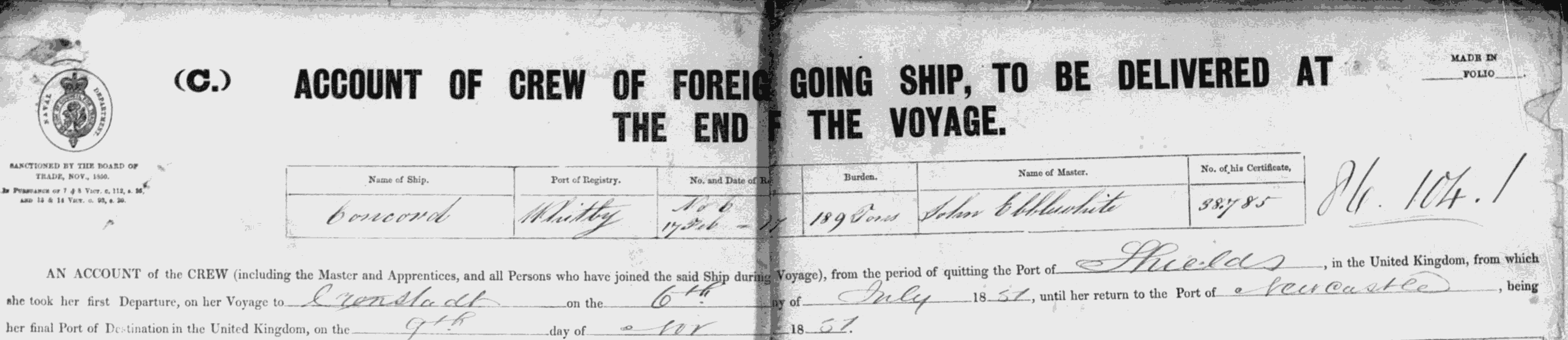

Fig 2: Crew agreement for the Concord of Whitby in 1851 - port rotation number (86) and port number (104) written on the right
Fig 3: James Breckon is shown as one of the apprentices
Navigation up arrow


The 1851 Port Rotation Numbers Project would not have happened without Peter Hamersley's insight and his work in digging data out of the crew agreements. He has provided the ideas and stimulus which have resulted in a significant breakthrough in solving the mystery of these numbers.

Thank you, Peter.

We are most grateful to Bruno Pappalardo at TNA who has provided valuable support and assistance

We thank our volunteer transcribers, Robert Holloway and Janine Hamersley in Australia and Myfanwy Gate at the National Library of Wales (NLW)

The staff of NLW have been most helpful and Anglesey Archives have provided valuable assistance in obtaining access to the records online.
